Freeze drying, also known as lyophilization, is a critical process used in the pharmaceutical and healthcare industries for preserving a wide range of biological materials, including vaccines, biologics, and antibiotics. The technique involves removing moisture from products by freezing them and then reducing the pressure to allow the frozen water to sublimate, leaving the product in a dry and stable form. This method not only extends the shelf life of sensitive products but also preserves their biological activity and efficacy.
Freeze drying is a sophisticated preservation technique that involves three key stages: freezing, primary drying (sublimation), and secondary drying (desorption). In the freezing phase, the product is rapidly frozen, causing water to form ice crystals. During primary drying, the pressure is reduced in a vacuum chamber, and the ice directly turns into vapor, bypassing the liquid phase (sublimation). In secondary drying, the remaining bound water is removed, ensuring the product reaches a stable, dry state with minimal residual moisture.
This process is particularly useful for preserving delicate materials that are sensitive to heat or chemicals, such as proteins, enzymes, and vaccines. Freeze-drying helps to maintain the integrity, potency, and effectiveness of these products over time.
In the pharmaceutical industry, the demand for freeze drying has surged due to the increasing need for stable, long-lasting formulations of vaccines, biologics, and other therapeutic agents. Lyophilization is especially important for products that cannot be effectively preserved using traditional methods like refrigeration or chemical preservatives. Freeze-drying ensures that these products can be stored at room temperature without compromising their quality, which is essential for global distribution and accessibility.
For instance, vaccines often need to be transported to remote areas with limited cold storage facilities. By freeze-drying them, pharmaceutical companies can ensure that the vaccines remain stable and potent without the need for refrigeration, making the logistics much easier and cost-effective.
The benefits of freeze-drying extend far beyond stability. Some of the most important advantages include:
Freeze drying removes water, the primary cause of degradation in most pharmaceutical products. This enhances the chemical and biological stability of sensitive compounds, such as proteins and vaccines, by minimizing the risk of microbial growth or chemical reactions.
By removing moisture, freeze drying extends the shelf life of pharmaceutical products. Many vaccines, biologics, and antibiotics that would otherwise have a limited shelf life when stored in liquid form can now be stored for years without refrigeration, making them ideal for global distribution.
Freeze-dried products are lightweight and stable at room temperature, making them much easier and cheaper to transport over long distances. This is particularly advantageous in regions where cold-chain logistics may be unreliable or unavailable, such as in rural or underdeveloped areas.
When it comes to freeze drying, one size does not fit all. The choice of freeze drying equipment depends on several factors, including the scale of production, the type of product being dried, and the specific requirements of the pharmaceutical or healthcare application. Freeze dryers are available in various sizes and configurations to accommodate everything from laboratory-scale research to large-scale industrial production. Below, we break down the key types of freeze drying equipment, their components, and the benefits of each.
Laboratory freeze dryers are primarily used in research and development settings, where small-scale production and testing are needed. These units allow scientists to fine-tune formulations, optimize processes, and evaluate the stability of products before scaling up to larger production sizes. There are two main categories of laboratory freeze dryers:
Benchtop freeze dryers are compact, tabletop units designed for laboratory use. These models are ideal for small batches of material and offer a high degree of control over the freeze drying process. Benchtop units typically have a small drying chamber and are used for experiments that require precise temperature and pressure control. Because they are portable, benchtop freeze dryers are also useful in academic and industrial research environments where space is limited.
Advantages of Benchtop Freeze Dryers:
Small footprint, ideal for limited space.
Cost-effective for R&D and pilot-scale work.
Highly customizable with different accessories like glassware, vacuum pumps, and temperature sensors.
Limitations:
Limited capacity.
Not suitable for large-scale or commercial production.
Manifold freeze dryers are also commonly used in laboratories, particularly when handling multiple small vials or samples at once. Unlike benchtop models that typically handle a single batch in a single chamber, manifold freeze dryers connect multiple vials to a single vacuum manifold, allowing for the simultaneous drying of multiple samples. This makes them ideal for batch processing of various formulations in research settings.
Advantages of Manifold Freeze Dryers:
Efficient for drying multiple small samples simultaneously.
Greater flexibility in testing different formulations or conditions.
Ideal for development of new freeze-dried products.
Limitations:
Limited scalability for larger production volumes.
Requires careful monitoring of each vial’s progress during drying.
Pilot-scale freeze dryers are used to bridge the gap between laboratory-scale research and full-scale commercial production. These units typically have a larger capacity than benchtop or manifold systems, allowing for the testing of production-scale processes in a controlled environment. Pilot-scale freeze dryers help manufacturers evaluate the viability of scaling up a process while ensuring that product quality and stability remain consistent.
Advantages of Pilot-Scale Freeze Dryers:
Larger capacity than laboratory models.
Helps simulate commercial-scale production in a smaller, cost-effective setup.
Used to evaluate process optimization and fine-tune operational parameters.
Limitations:
Larger footprint and higher cost than benchtop units.
Still not suitable for full-scale manufacturing.
At the industrial level, production-scale freeze dryers are designed to handle large volumes of material efficiently and consistently. These systems are critical for high-volume manufacturing of freeze-dried pharmaceutical products such as vaccines, biologics, and diagnostic kits. Production-scale units can be fully automated and feature advanced control systems to ensure reproducibility, precision, and compliance with regulatory standards like Good Manufacturing Practices (GMP).
Tray dryers are a common type of production-scale freeze dryer that uses trays or shelves to hold the product during the drying process. The trays are placed inside a vacuum chamber where the freezing and drying processes take place. This type of dryer is ideal for products that require large surface areas for drying, such as powders, granules, or bulk pharmaceutical formulations.
Advantages of Tray Dryers:
High throughput, suitable for large-scale production.
Flexible design for various product types and packaging.
Easy to scale up for mass production.
Limitations:
Requires significant floor space.
Slower cycle times compared to other systems.
Vial freeze dryers are designed specifically for applications where the product is packaged in vials, such as in the case of injectable pharmaceuticals. These systems accommodate vials of various sizes and hold them in place during the freeze drying process. The vials are typically arranged on shelves within the freeze drying chamber, and the system provides precise control over temperature and vacuum levels to ensure optimal drying conditions.
Advantages of Vial Freeze Dryers:
Ideal for pharmaceutical products in vial form.
Ensures uniform drying across multiple vials.
Suitable for high-value, sensitive products that require precise handling.
Limitations:
Larger footprint and more complex design.
Higher cost than tray systems.
Modern production freeze dryers can be equipped with automatic loading and unloading systems to streamline operations. These systems use robotics or conveyors to load and unload vials or trays from the freeze dryer. Automation helps reduce labor costs, improve consistency, and minimize human error.
Advantages of Automated Systems:
Increased efficiency and reduced labor costs.
Higher consistency and reliability in the drying process.
Improved compliance with GMP standards.
Limitations:
Initial investment cost can be high.
Requires space for automation infrastructure.
Whether it's a laboratory, pilot-scale, or production-scale system, all freeze dryers share several critical components that are essential for the lyophilization process. These include:
The vacuum system is one of the most important components in freeze drying. It lowers the pressure inside the drying chamber, which facilitates the sublimation of ice into vapor without passing through the liquid phase. A reliable vacuum system ensures that the freeze drying process occurs under the right conditions, preventing damage to the product.
The refrigeration system is responsible for maintaining the low temperatures required for freezing the product and keeping it frozen throughout the lyophilization process. It works in conjunction with the vacuum system to enable the sublimation process.
Advanced control systems provide precise monitoring and adjustment of temperature, pressure, and time throughout the freeze drying cycle. These systems often come with software interfaces that allow operators to track process parameters in real-time and adjust settings as needed.
The drying chamber is the space where the actual freeze drying takes place. The product is placed inside the chamber on trays or vials, and the temperature and pressure are carefully controlled to ensure the optimal removal of moisture.
Freeze drying, or lyophilization, plays a vital role in the preservation of various pharmaceutical and healthcare products. By removing moisture while preserving the biological integrity and stability of sensitive materials, freeze-drying is widely used in the production of vaccines, biologics, antibiotics, and other critical pharmaceutical formulations. In this section, we explore the most common and impactful applications of freeze drying in the pharmaceutical and healthcare industries.
Vaccines, especially those made from live attenuated or inactivated viruses, are highly sensitive to environmental factors such as temperature and moisture. Freeze drying plays an indispensable role in vaccine production by preserving their potency during long-term storage and transportation.
In the production of vaccines, lyophilization serves to stabilize the active ingredients—whether they are proteins, peptides, or virus particles—by removing water without causing damage to the delicate structure of the molecules. This ensures that vaccines can be stored at room temperature for extended periods, facilitating easier distribution to regions with limited access to refrigeration or cold-chain infrastructure.
Benefits of Freeze Drying in Vaccine Production:
Extended shelf life: Freeze-dried vaccines remain stable for longer periods compared to liquid counterparts.
Ease of transportation: Lyophilized vaccines are much lighter and easier to transport without requiring refrigeration.
Preserved efficacy: The process helps maintain the biological activity and potency of the vaccine even after long storage periods.
Biologics, including monoclonal antibodies (mAbs), therapeutic enzymes, and hormones, are increasingly important in the treatment of various diseases, including cancers, autoimmune disorders, and genetic conditions. However, these biologics are highly sensitive to temperature, light, and moisture, making their stability and shelf life a significant challenge.
Lyophilization offers a solution by preserving the structure and function of proteins and other biologic agents. Through the freeze-drying process, moisture is removed, and the biologic material is preserved in a stable, dry form, maintaining its therapeutic efficacy. In addition, freeze-drying can also enable the formulation of biologics into convenient, easy-to-administer doses, such as injectable powders.
Benefits of Freeze Drying in Biologics:
Preserved protein integrity: Freeze-dried biologics retain their three-dimensional structure and functionality.
Improved storage and handling: Lyophilization allows biologics to be stored at ambient temperatures, reducing the need for expensive cold storage solutions.
Minimized degradation: The process prevents hydrolysis and oxidation, which can lead to biologic degradation.
Antibiotics are among the most commonly lyophilized pharmaceutical products. Many antibiotics, especially those used for parenteral (injectable) administration, are sensitive to heat and moisture, which can cause them to lose their potency or become toxic.
Freeze-drying helps preserve these drugs by preventing degradation caused by moisture and temperature fluctuations. This is particularly important in the case of antibiotics that need to be stored for extended periods or transported to regions where refrigeration may not be available. Lyophilized antibiotics are easy to reconstitute with a suitable solvent, making them convenient for both manufacturers and healthcare providers.
Benefits of Freeze Drying in Antibiotic Preservation:
Enhanced stability: Freeze-dried antibiotics maintain their potency for longer periods.
Easier transport and storage: Lyophilized antibiotics are lighter and can be stored at room temperature, eliminating the need for cold-chain logistics.
Reconstitution flexibility: Lyophilized antibiotics can be easily reconstituted at the point of use, ensuring precise dosing and effective delivery.
Diagnostic kits, which often include enzymes, antibodies, and other biological reagents, must remain stable and effective over long periods to ensure the reliability of medical testing. Freeze drying is frequently used to preserve these biological components in diagnostic kits, particularly for point-of-care tests and immunoassays, where quick results are needed in a variety of clinical settings.
For example, rapid diagnostic tests for diseases such as malaria, HIV, or COVID-19 often rely on freeze-dried reagents, which allow for room temperature storage and extended shelf life without compromising accuracy. Freeze-drying helps maintain the integrity of enzymes, antibodies, and other biomolecules that are key to the functionality of these diagnostic assays.
Benefits of Freeze Drying in Diagnostic Kits:
Long shelf life: Freeze-dried diagnostic reagents are stable for extended periods, reducing waste and ensuring consistent test performance.
Stable at room temperature: Lyophilized diagnostic kits can be stored and transported without requiring cold-chain facilities, making them ideal for use in remote or underserved areas.
Ease of use: Lyophilized reagents are typically reconstituted quickly, ensuring rapid deployment in clinical diagnostics.
Freeze drying is also employed in the preservation of biological tissues, such as for use in medical research or organ transplantation. By removing moisture, freeze-drying prevents ice crystal formation, which could damage cell structures and compromise tissue viability. This makes freeze drying an excellent choice for preserving tissues for later examination or transplantation.
For instance, lyophilized tissues can be used in cancer research, vaccine testing, or transplant immunology, where the stability of the tissue is critical for accurate results. Freeze-drying also enables long-term storage of samples without the need for liquid nitrogen or other cryogenic preservation methods.
Benefits of Freeze Drying in Tissue Preservation:
Improved tissue integrity: Freeze drying minimizes damage to tissues during storage, maintaining their structural and functional properties.
Long-term storage: Lyophilized tissues can be stored at room temperature, making them more accessible for research or clinical use.
Cost-effective: Freeze-dried tissue preservation is often less expensive and more practical than cryopreservation or other high-maintenance storage methods.
Selecting the right freeze drying equipment is a critical decision for pharmaceutical companies, biotech firms, and research institutions. With various options available, choosing the appropriate system depends on multiple factors, ranging from the scale of production to regulatory compliance. Whether you're setting up a lab for research or scaling up to full-scale production, there are key considerations that will influence your choice of equipment. Below, we highlight the most important factors to consider when selecting freeze drying equipment.
One of the first things to consider when selecting freeze drying equipment is the capacity and throughput requirements. The volume of material that needs to be freeze-dried will largely determine the type of equipment you choose.
Laboratory-scale freeze dryers have limited capacity, typically ranging from a few milliliters to a few liters of product. These are ideal for small batches, R&D, and testing.
Pilot-scale systems offer higher throughput, allowing manufacturers to test processes on a larger scale before moving to commercial production.
Production-scale freeze dryers are designed for high-volume, continuous production. They can handle larger batches, often in the range of hundreds of liters or more.
Determining the required throughput ensures that your equipment can meet demand without compromising on efficiency. Oversized equipment can lead to inefficiency and increased costs, while undersized equipment may not meet production goals.
The type of product being processed is another critical factor. The characteristics of the product, such as its eutectic temperature, thermal stability, and moisture content, will dictate the most suitable freeze drying system.
Eutectic temperature is the temperature at which a substance transitions from solid to liquid during freezing. Knowing the eutectic temperature helps in selecting the appropriate freeze drying conditions to prevent product collapse or degradation during the process.
Thermal stability: Some products, like proteins, are extremely sensitive to temperature changes. In such cases, advanced systems with precise temperature control and vacuum management are needed to avoid product degradation.
Moisture sensitivity: Products with high moisture content, like vaccines or biologics, require careful control of the drying process to avoid damage during the transition from frozen to dry form.
For more complex or delicate materials, the freeze dryer must have a system that can maintain a precise, controlled environment throughout the entire process.
Pharmaceutical manufacturers must adhere to stringent regulatory standards, especially in large-scale production. Good Manufacturing Practice (GMP) guidelines require that freeze-drying processes be tightly controlled and documented to ensure the safety and efficacy of the final product.
When selecting freeze drying equipment, it is essential to ensure that the system complies with GMP regulations. This includes features such as:
Automated monitoring and control: Systems must allow for real-time data collection and adjustments to maintain the required process parameters.
Validation capabilities: Equipment should support the validation of the freeze drying process, including temperature mapping and residual moisture analysis, to ensure that the product meets specifications.
Cleanability: The system should be easy to clean and maintain to prevent contamination between batches.
GMP-compliant equipment not only ensures product safety but also helps manufacturers avoid costly delays or regulatory fines.
Automation is increasingly important in the pharmaceutical and healthcare industries, where maintaining consistency, reducing human error, and improving efficiency are key objectives. When selecting a freeze dryer, consider the degree of automation required for your production process.
Some key automation features to look for include:
Automated loading and unloading systems: For production-scale systems, automatic loading and unloading reduce manual labor and improve throughput. This is particularly useful in high-volume manufacturing where consistency and speed are critical.
Cycle control and monitoring: Freeze dryers with automated control systems allow for precise management of temperature, pressure, and time parameters. These systems can optimize the drying cycle and reduce operator intervention, leading to consistent results.
Data logging and reporting: Automated systems can store and analyze data, providing a complete record of the freeze-drying process for compliance, quality control, and process optimization.
For large-scale operations, investing in automation can help streamline production, reduce operational costs, and improve overall process efficiency.
While the initial investment cost of freeze drying equipment is an important factor, it’s equally crucial to consider the operating costs associated with the equipment over its lifecycle. The long-term costs can vary depending on the type and scale of the system.
Energy consumption: Freeze drying is an energy-intensive process, particularly in large-scale operations. Choosing energy-efficient equipment can help reduce operating costs over time.
Maintenance costs: Routine maintenance is essential to keep freeze drying equipment running smoothly. Look for systems that offer easy-to-service components and remote troubleshooting features.
Upgrades and scalability: Consider whether the equipment can be easily upgraded or scaled in the future, especially if your production needs grow. Systems that can expand or adapt to different production volumes may provide better long-term value.
Freeze drying systems can be quite large, especially production-scale units. Before purchasing equipment, ensure that you have the required space to accommodate it. Large freeze dryers with automated systems, in particular, can take up significant floor space.
Additionally, freeze dryers require specific utility connections, including:
Electrical: Freeze dryers typically require a significant amount of electrical power, especially for refrigeration and vacuum systems.
Water supply: Many freeze dryers have cooling systems that require a steady supply of water.
Vacuum system connections: Vacuum pumps need to be properly integrated into the system to maintain the correct pressure during the drying process.
Make sure that your facility can support the necessary utilities and that the freeze dryer will fit within your production area.
Freeze drying, or lyophilization, is a critical process for the pharmaceutical and healthcare industries, used to preserve sensitive products like vaccines, biologics, and diagnostic kits. The process involves removing water from a product by first freezing it and then sublimating the ice directly into vapor without passing through the liquid phase. This delicate and multi-step process requires precise control of temperature, pressure, and time. Below is a detailed step-by-step guide to the freeze-drying process.
Before the freeze drying process can begin, the product must undergo pre-treatment to prepare it for freezing. This step involves formulation and other processing techniques to ensure that the final freeze-dried product retains its biological integrity and effectiveness.
Formulation: The product’s active ingredients are typically combined with excipients such as lyoprotectants (e.g., sucrose, trehalose) and bulking agents. Lyoprotectants protect sensitive proteins, enzymes, and other biomolecules from damage during the freeze-drying process by stabilizing them and preventing ice crystal formation. Bulking agents help ensure uniform reconstitution when the product is later mixed with a solvent.
Vial or Tray Preparation: For vials, the product is dispensed into pre-sterilized containers, and for bulk or powder products, it may be loaded onto trays or shelves in a freeze dryer. Uniform distribution of the material ensures consistency in drying.
Freezing Point Adjustment: Certain formulations may require specific freezing points to ensure that the product freezes in a stable state. This can be adjusted through controlled cooling during the preparation phase.
The quality of the formulation and pre-treatment process significantly impacts the final quality of the freeze-dried product. Ensuring proper preparation before freeze drying is critical for achieving the desired product characteristics.
Once the product is properly prepared, it enters the freezing stage, which is one of the most critical parts of the freeze-drying process. During this phase, the product is rapidly frozen to convert all water content into solid ice.
Freezing Rate: The rate at which the product is frozen must be carefully controlled to prevent the formation of large ice crystals, which can damage the structure of proteins or other sensitive components. Slow freezing can lead to larger crystals, while too rapid freezing can cause an uneven freeze.
Temperature Control: The product is typically cooled to a temperature below its eutectic temperature, the temperature at which the water content becomes solidified. The process must be done gradually to avoid shock to the product. During freezing, the temperature is typically lowered to as low as -40°C to -80°C, depending on the specific requirements of the material being processed.
The freezing stage is crucial because it ensures that the water in the product forms small ice crystals, which are easier to remove in the subsequent drying steps without causing damage.
The primary drying phase is where the bulk of the water is removed from the product. During primary drying, the temperature is carefully increased, and the pressure in the chamber is reduced to create a vacuum environment. This causes the ice in the product to sublimate (change directly from solid ice to vapor) without transitioning into the liquid phase.
Sublimation: In a vacuum environment, the heat supplied causes the ice to vaporize, leaving the product in a dry, porous state. This is the most critical phase for removing the majority of water (usually 80% to 95%) from the product.
Pressure and Temperature Control: To avoid melting or collapsing the product, the temperature and vacuum pressure must be carefully controlled. A typical vacuum level for this phase is 0.1 to 0.3 mbar (0.1 to 0.3 Torr). The temperature is typically kept below the eutectic point of the product to prevent thawing.
During primary drying, the process must be monitored continuously to ensure that the material doesn’t degrade or undergo structural collapse due to excessive heat or improper vacuum conditions.
Following primary drying, the product still contains some residual moisture, typically around 1-5%. The secondary drying phase is designed to remove this remaining moisture by heating the product under a low-pressure environment. During this phase, the water that was bound to the product (known as “bound water”) is removed.
Temperature Increase: The temperature of the product is gradually increased, typically to 20°C to 30°C, depending on the formulation. This allows for the removal of the final traces of water without compromising the structure of the product.
Desorption: The low pressure in the chamber allows water to vaporize from the product’s surface. Secondary drying is essential for achieving the desired moisture content and preventing microbial growth or instability in the final product.
The goal of secondary drying is to achieve a final moisture level that is low enough to ensure long-term stability and prevent degradation.
Once the freeze-drying process is complete, the product must be sealed and packaged to protect it from moisture and contamination. The packaging material should be chosen to ensure a proper barrier to moisture, oxygen, and light, which could otherwise degrade the product over time.
Sealing: Vials are sealed using rubber stoppers or crimp seals to prevent moisture from re-entering the product. For bulk or powder products, the material is usually packed in airtight containers that prevent moisture exposure.
Packaging: Freeze-dried products may be packaged in vacuum-sealed bags, blister packs, or bottles depending on the specific product and its intended use. The packaging must maintain the integrity of the product during storage and transportation, especially if the product needs to be shipped to locations without reliable refrigeration.
Proper sealing and packaging are crucial to ensure that the freeze-dried product maintains its stability until it is ready for use.
Freeze drying, or lyophilization, is a complex and delicate process that requires precise control of various parameters to ensure the quality and stability of the final product. To maximize the efficiency and effectiveness of the freeze drying process, pharmaceutical manufacturers and researchers must employ optimization techniques that fine-tune the cycle, improve product quality, and reduce operating costs. Below, we explore some of the key techniques used to optimize the freeze-drying process, including cycle optimization, formulation optimization, and process monitoring.
One of the most critical aspects of freeze drying is the optimization of the drying cycle. The drying cycle consists of several steps—freezing, primary drying (sublimation), and secondary drying (desorption)—each requiring specific temperature, pressure, and time conditions to achieve the desired results. Optimizing these parameters can improve the quality of the final product, reduce drying time, and increase process efficiency.
Temperature Control: Proper temperature management is essential during both the primary and secondary drying phases. During primary drying, the temperature needs to be controlled below the eutectic point of the product to avoid melting, while still being high enough to drive sublimation. In secondary drying, the temperature is increased to remove residual moisture, but it must not exceed the thermal limits of the product.
Pressure Control: Vacuum pressure plays a key role in controlling the rate of sublimation. During primary drying, pressure should be low enough to allow ice to transition directly from a solid to a gas, but not so low that the product collapses. The pressure needs to be gradually increased during secondary drying to help desorb the remaining bound water.
By carefully optimizing the temperature and pressure parameters at each stage, manufacturers can achieve more efficient drying cycles, reduce the risk of product degradation, and minimize energy consumption.
Freeze Drying Software: Modern freeze-drying equipment often includes optimization software that allows operators to model and simulate the freeze-drying process under different conditions. This software can help identify the best parameters for temperature, pressure, and time for a given product, as well as allow for real-time monitoring and adjustment.
Cycle Prediction: The software can predict how different formulations and product types will behave under various conditions, helping optimize drying cycles before they are implemented in a real-world setting. This reduces trial-and-error and speeds up the development of optimized processes.
Software tools are invaluable for ensuring that the freeze-drying process is operating as efficiently as possible while maintaining the integrity of the product.
The formulation of a product plays a crucial role in its performance during the freeze-drying process. By optimizing the formulation, manufacturers can enhance product stability, reduce drying time, and prevent issues such as collapse or shrinkage of the freeze-dried material.
Lyoprotectants such as sucrose, trehalose, and mannitol are commonly added to freeze-dried products to protect delicate biomolecules (e.g., proteins, vaccines, and enzymes) from damage during the drying process. Lyoprotectants prevent the formation of large ice crystals that can rupture cellular structures, as well as help stabilize proteins by forming a protective matrix around them.
Optimization of Lyoprotectant Concentration: The amount and type of lyoprotectant added to the formulation should be carefully optimized to balance protection with product quality. Too little lyoprotectant can result in product instability, while too much can increase the drying time or reduce the final product’s efficacy. Research and empirical testing can help determine the optimal concentration of lyoprotectants.
Bulking agents are used to create a porous structure in the freeze-dried product, improving its texture and making it easier to reconstitute after drying. Common bulking agents include mannitol, lactose, and sodium chloride.
Formulation Considerations: By adjusting the concentration of bulking agents, manufacturers can control the drying rate and enhance the rehydration process. Bulking agents can also help reduce the risk of product collapse, which is a common issue in freeze-drying sensitive materials like proteins or vaccines.
The formulation optimization process requires a deep understanding of the material’s chemistry and how different excipients interact with the active pharmaceutical ingredient during freezing and drying.
Effective process monitoring is essential to ensure the freeze-drying process is operating optimally. By implementing advanced monitoring systems, manufacturers can track key parameters in real-time and make adjustments as necessary to maintain optimal drying conditions.
Temperature Mapping: During the freeze-drying process, it is essential to monitor the temperature of both the product and the environment. Uneven temperatures across the chamber can lead to inconsistent drying, product collapse, or uneven moisture content.
Thermal Uniformity: Temperature mapping helps identify areas of the freeze dryer where temperatures may fluctuate or be inconsistent. By conducting a thorough temperature mapping study, operators can ensure that heat is distributed evenly throughout the drying chamber, improving the uniformity and quality of the final product.
Temperature sensors placed at multiple points in the drying chamber provide continuous feedback, allowing operators to make real-time adjustments if needed.
Residual Moisture: One of the most important quality metrics for a freeze-dried product is its final moisture content. Too much residual moisture can lead to product degradation, while too little moisture can result in physical damage to the product.
Moisture Analysis Tools: Tools such as near-infrared (NIR) spectroscopy and Karl Fischer titration are used to measure residual moisture levels. Regular moisture analysis allows for precise adjustments in the drying process, ensuring that the final product reaches the desired moisture content for long-term stability.
Residual moisture analysis is often a critical part of quality control, especially for products intended for sensitive applications such as vaccines, biologics, or antibiotics.
Freeze drying, or lyophilization, is a cornerstone of pharmaceutical and biotechnology industries, playing a crucial role in preserving biologics, vaccines, proteins, and other sensitive products. Over the years, the technology has seen significant advancements aimed at improving efficiency, product quality, and scalability. Today, innovations in freeze drying technology are focused on improving the speed, energy efficiency, and precision of the process, all while maintaining the integrity of sensitive materials. This section will explore some of the most exciting recent innovations in freeze drying.
One of the most groundbreaking innovations in freeze drying technology is the development of continuous freeze drying. Traditional freeze drying systems operate in a batch process, where each batch of product is loaded, dried, and then unloaded before the next batch begins. This process can be time-consuming and energy-intensive.
Continuous Processing: Continuous freeze drying introduces a more streamlined and efficient approach by allowing the product to be dried in a continuous flow. Instead of waiting for one batch to complete before starting another, products are fed into the system and move through the drying process in a constant, uninterrupted stream.
Benefits: The primary advantages of continuous freeze drying are increased throughput and improved energy efficiency. This approach reduces downtime between batches, making it ideal for high-volume production. Additionally, the continuous process enables better control over the drying conditions, which can lead to improved product consistency.
Applications: Continuous freeze drying is particularly useful for large-scale pharmaceutical manufacturing, where high productivity is essential. It is also beneficial for products that require strict control over moisture content, such as vaccines or biologics, where consistency is critical.
While still in its early stages, continuous freeze drying represents a significant shift in how the industry approaches large-scale lyophilization.
The integration of smart technologies into freeze drying equipment is another recent innovation. Smart freeze dryers are equipped with advanced sensors, automated control systems, and data analytics to optimize the freeze-drying process in real-time.
Real-time Monitoring: Smart freeze dryers use a variety of sensors to continuously monitor key parameters such as temperature, pressure, and residual moisture. By collecting this data, the system can automatically adjust conditions to ensure the drying process is as efficient and consistent as possible.
Predictive Analytics: One of the most exciting features of smart freeze drying is the ability to use predictive analytics to optimize drying cycles. By analyzing historical data and product characteristics, these systems can predict the ideal temperature and pressure settings, reducing the trial-and-error typically involved in process development.
Remote Control and Diagnostics: Many smart freeze-drying systems allow operators to monitor and control the process remotely via cloud-based platforms. This capability improves accessibility and can help manufacturers troubleshoot issues more quickly, minimizing downtime and reducing the need for on-site intervention.
Benefits: By incorporating artificial intelligence and machine learning algorithms, smart freeze dryers can adapt in real-time to changes in the process, improving both efficiency and product quality. These systems also help streamline quality control, enhance traceability, and comply with regulatory requirements more effectively.
The integration of smart technologies is making freeze drying more automated, transparent, and adaptable to specific product requirements, offering new possibilities for high-quality manufacturing.
Process Analytical Technology (PAT) refers to a set of tools and techniques used to monitor and control the manufacturing process in real-time. In freeze drying, PAT tools help ensure that the lyophilization process is consistent, efficient, and optimized for product quality.
Inline Monitoring: PAT techniques, such as spectroscopy (e.g., Near-Infrared (NIR) or Raman spectroscopy) and temperature sensors, can be used to continuously monitor product characteristics, such as moisture content and temperature, during the drying process. This allows for real-time adjustments to the temperature, pressure, or freezing rate, ensuring optimal conditions throughout the cycle.
Control of Critical Quality Attributes (CQAs): PAT helps control critical quality attributes (CQAs), such as residual moisture content, product stability, and physical appearance. By monitoring these factors during the process, operators can make adjustments to ensure the product meets strict regulatory and quality control standards.
Enhanced Process Understanding: The use of PAT enables a deeper understanding of the freeze-drying process, providing valuable insights into how different product formulations behave under specific conditions. This can help manufacturers optimize their process development and minimize the risk of product failure.
By adopting PAT, pharmaceutical companies can achieve better consistency and process control, reduce waste, and speed up the development and validation of new products.
Controlled ice nucleation is an emerging innovation that is particularly beneficial for sensitive biologics and proteins. In traditional freeze drying, ice crystals form randomly as the product is frozen. This can lead to large ice crystals, which may damage the structure of the product and affect its reconstitution after freeze drying.
Controlled Ice Nucleation Technology: By introducing a controlled nucleation phase, manufacturers can precisely control the formation of ice crystals during freezing. This process allows for the formation of smaller, more uniform ice crystals, reducing the risk of damage to the product’s molecular structure.
Benefits: The main advantages of controlled ice nucleation are:
Improved Product Quality: Smaller, uniform ice crystals help preserve the integrity of biologics and proteins, resulting in a higher-quality final product.
Faster Drying: With smaller ice crystals, the sublimation process (primary drying) can occur more efficiently, reducing overall drying time and improving throughput.
Better Reconstitution: Products that undergo controlled ice nucleation tend to have better rehydration properties, which is crucial for products like vaccines and therapeutic proteins that need to be reconstituted before use.
This technology is particularly promising for the pharmaceutical and biotech industries, where the quality of the freeze-dried product is of utmost importance.
In some cases, hybrid systems that combine traditional freeze drying with other drying techniques are being explored to improve the speed and efficiency of the process.
Vacuum Microwave Drying: This hybrid approach combines vacuum drying with microwave energy to enhance the drying rate during the primary and secondary drying stages. By using microwaves to accelerate sublimation, these systems can reduce drying time and energy consumption while maintaining the quality of the product.
Spray Freeze Drying: Spray freeze drying combines the benefits of spray drying (a technique used for creating fine powders) with freeze drying. This hybrid approach allows for the rapid freezing of liquid formulations before they undergo lyophilization, which can improve the product's morphology and enhance the drying process.
Benefits: Hybrid technologies can provide a faster, more efficient drying process without sacrificing the stability or integrity of the product. These systems can be particularly useful for large-scale pharmaceutical manufacturing, where speed and efficiency are essential.
Freeze drying (lyophilization) is a highly specialized process that requires precision and attention to detail at every stage to ensure the preservation of sensitive pharmaceutical and healthcare products. However, like any complex machinery, freeze dryers are susceptible to wear and tear, malfunctions, and performance degradation over time. Regular maintenance and effective troubleshooting are essential to maximize equipment lifespan, maintain product quality, and avoid costly downtime. This section outlines the best practices for maintaining freeze-drying equipment and offers troubleshooting tips for common problems.
Proper routine maintenance ensures that your freeze dryer operates efficiently and consistently. Scheduled maintenance reduces the likelihood of unexpected failures and extends the lifespan of critical components. Below are some of the key areas that require attention during routine maintenance:
Chamber Cleaning: The freeze dryer’s drying chamber and other contact surfaces should be cleaned regularly to prevent cross-contamination, especially when processing different products or batches. Use non-abrasive cleaning agents and follow the manufacturer's instructions for cleaning.
Vacuum Lines and Filters: The vacuum system includes pumps, lines, and filters that require periodic cleaning and replacement. Vacuum pumps should be checked for proper functioning, and filters should be replaced regularly to ensure efficient air flow and prevent contamination.
Condensers: Condensers, responsible for freezing the moisture from the product, should be cleaned frequently to remove ice buildup. Any ice or residue left in the condenser can obstruct the cooling system, reducing efficiency.
Sterilization: For equipment used in pharmaceutical applications, sterilization procedures may be necessary, especially when switching between different product batches. Depending on the process, it might be required to disinfect the entire system using steam or other methods.
Lubrication: Many freeze dryers include components such as vacuum pumps, compressors, and motors that require periodic lubrication. Check the manufacturer's manual for recommended lubricants and schedules for applying them.
Fluid Levels: For freeze dryers equipped with cooling systems that use water or other fluids, ensure that fluid levels are within the recommended range. Low coolant levels can result in inefficient cooling, affecting the overall performance of the system.
Electrical Components: Inspect electrical components regularly for signs of wear, corrosion, or damage. Test key electrical systems, such as control panels, wiring, and power supplies, to ensure proper functioning. Any abnormalities in power systems should be addressed immediately to prevent equipment failure.
Pressure Gauges: The pressure system of a freeze dryer, including pressure gauges and valves, should be regularly checked for accuracy. Misreading pressure gauges can lead to improper control of vacuum levels and suboptimal drying conditions.
Software Maintenance: Many modern freeze dryers are equipped with smart technologies that include automated control systems and software interfaces. Ensure that software updates and patches are applied regularly to keep the system optimized.
Calibration: Calibration of sensors, including temperature probes, pressure sensors, and moisture analyzers, should be performed on a regular basis to ensure that the system is providing accurate data and making the right adjustments to the drying process.
By following a consistent maintenance schedule and checking each component regularly, freeze dryers can remain in optimal working condition, reducing the chances of breakdowns and ensuring product quality.
Despite proper maintenance, freeze-drying equipment can experience issues that may compromise efficiency or product quality. Below are some common problems and their corresponding solutions:
Problem: A vacuum leak occurs when there is an unintended loss of vacuum pressure, which can result in improper sublimation and extended drying times. This issue can also lead to product collapse or degradation, especially in biologics.
Solution: To identify vacuum leaks, perform a vacuum leak test by isolating the vacuum system and monitoring pressure levels over time. Inspect all vacuum lines, seals, gaskets, and valves for visible damage or wear. Replace any faulty components and ensure that the system is sealed properly. Conduct leak tests after maintenance or changes to vacuum components to ensure tight seals.
Problem: Inefficient cooling can occur when the refrigeration system or condenser fails to maintain the necessary low temperatures during the freezing or drying process. This can lead to uneven drying, longer cycle times, and reduced product quality.
Solution: Check the condenser for ice buildup, as frozen moisture can obstruct airflow and reduce the system’s ability to cool effectively. If the cooling system uses a fluid (such as water or glycol), ensure that fluid levels are correct and that the system is free of air bubbles. For refrigerant-based systems, ensure that the correct refrigerant levels are maintained and that there are no leaks. Routine maintenance and cleaning of these components will help prevent cooling inefficiencies.
Problem: Product collapse can occur when the primary drying stage occurs at too high a temperature or pressure, causing the structure of the freeze-dried product to collapse. This is particularly a concern for biologics, proteins, and vaccines.
Solution: Ensure that temperature and pressure parameters are carefully controlled during primary drying. Adjust the eutectic temperature (the temperature at which the product's water freezes) to avoid damaging the product. The use of lyoprotectants and bulking agents in formulations can also help stabilize the product and prevent collapse. It is essential to validate the drying cycle parameters and adjust based on product-specific needs.
Problem: If the moisture content of the product is inconsistent across the batch, it could indicate issues with drying chamber uniformity, temperature fluctuations, or an incorrect vacuum level during primary or secondary drying.
Solution: Conduct temperature mapping and residual moisture analysis to identify areas of the chamber with temperature or moisture imbalances. Regularly check the vacuum system to ensure proper pressure control. Use moisture sensors to continuously monitor the product during drying, and optimize the drying cycle parameters for consistency. If the freeze dryer’s software allows, adjust the cycle dynamically based on moisture content readings.
Problem: Inadequate rehydration can occur when the freeze-dried product does not return to its original state upon reconstitution, often due to poor freeze-drying parameters or formulation issues.
Solution: Verify that the cycle parameters (e.g., temperature, pressure, freezing rate) are suitable for the product being dried. Ensure that the formulation includes appropriate lyoprotectants and bulking agents to enhance rehydration. Performing tests on small batches before scaling up production can also identify potential issues with rehydration.
The pharmaceutical freeze-drying industry is undergoing significant transformation, driven by advancements in technology, changing market needs, and evolving regulatory environments. As the demand for biologics, personalized medicine, and vaccines continues to rise, the freeze-drying process is being optimized to address the challenges of production scalability, cost efficiency, and product quality. In this section, we explore the key future trends shaping the pharmaceutical freeze-drying industry.
Automation and robotics are poised to revolutionize pharmaceutical manufacturing, and freeze-drying is no exception. With the growing demand for high-volume production of biologics, vaccines, and other pharmaceutical products, automating the freeze-drying process can significantly improve efficiency, consistency, and reliability.
Automated Loading and Unloading: The integration of robotics into the loading and unloading of vials, trays, or other containers in freeze dryers is already improving operational efficiency. Automated systems can handle large volumes of product with high precision, reducing human error and preventing cross-contamination. Additionally, automated systems can operate around the clock, further increasing production capacity.
Process Control Automation: Automation is also enhancing the control of drying cycles. Smart systems, equipped with sensors and predictive analytics, allow for real-time adjustments to parameters such as temperature, pressure, and moisture content. This level of automation reduces the need for manual intervention, making processes more predictable and consistent, and ensuring that products meet stringent quality requirements.
Robotic Maintenance: Robotic systems are also being developed to monitor equipment health, perform basic maintenance tasks, and even carry out inspections, reducing downtime and improving the lifespan of the equipment.
Benefits: Increased automation reduces labor costs, minimizes human errors, and enhances scalability. By optimizing resource allocation and reducing manual intervention, manufacturers can produce more with less.
As the global pharmaceutical industry faces increasing pressure to adopt more sustainable practices, freeze-drying technology is evolving to meet these demands. The focus on sustainability is driven by both regulatory requirements and consumer expectations for environmentally responsible production methods.
Energy Efficiency: Freeze-drying processes are typically energy-intensive due to the need to maintain low temperatures and high vacuum conditions. New developments in energy-efficient refrigeration systems and vacuum pumps are helping to reduce the environmental impact of freeze-drying operations. For instance, systems that use alternative refrigerants with lower global warming potential (GWP) are gaining traction as a more eco-friendly alternative to traditional cooling methods.
Water and Waste Reduction: Freeze-drying systems are becoming more efficient in managing water usage during the freezing and drying processes. Recycling water in closed-loop systems and minimizing waste generation are key sustainability goals in pharmaceutical manufacturing. Some companies are also exploring waste-to-energy approaches, where byproducts of the freeze-drying process can be converted into usable energy, reducing the overall environmental footprint.
Eco-friendly Materials: Pharmaceutical companies are increasingly investing in sustainable packaging solutions, using materials that are recyclable, biodegradable, or made from renewable sources. Freeze-drying equipment manufacturers are also focusing on reducing the environmental impact of their machines by using more sustainable materials in the construction of their units.
By addressing energy consumption, waste production, and material usage, freeze-drying technology is aligning itself with the pharmaceutical industry's broader goals of sustainability.
The rise of personalized medicine—the tailoring of medical treatment to individual patients based on genetic, environmental, and lifestyle factors—is another key trend influencing the future of pharmaceutical freeze-drying. As the demand for patient-specific treatments increases, freeze-drying plays a pivotal role in preserving these highly sensitive, individualized formulations.
Smaller Batches: With personalized medicine, pharmaceutical companies may need to produce smaller batches of highly specialized drugs or biologics. This requires freeze-drying equipment that can handle batch variability while maintaining high quality and consistency. New technologies are emerging that offer flexible, scalable freeze-drying systems capable of processing smaller volumes without compromising efficiency.
Advanced Formulations: Personalized medicine often involves complex formulations, including biologics, gene therapies, and cell-based therapies. These formulations require precise control during the freeze-drying process to ensure their efficacy and stability. Innovations in lyophilization technology, such as real-time monitoring and advanced temperature control, are helping to optimize the preservation of these sensitive products.
Customized Packaging: Alongside the production of personalized therapeutics, there is an increasing need for customized packaging solutions that are compatible with lyophilized products. Freeze-dried medications and therapies, when produced in small, patient-specific doses, often require specialized containers and protective packaging to maintain product integrity.
The growing focus on personalized medicine is driving the demand for adaptable, precise freeze-drying solutions that can meet the needs of individualized healthcare products.
The integration of artificial intelligence (AI) and machine learning (ML) into freeze-drying systems is enabling more advanced process control, faster product development, and more efficient manufacturing.
Process Optimization: AI and ML algorithms are being used to analyze large datasets from freeze-drying cycles, allowing for the identification of optimal drying parameters. These systems can predict the best temperature, pressure, and time settings based on the characteristics of the product, ensuring the highest quality with minimal waste.
Predictive Maintenance: AI-driven predictive maintenance systems are helping manufacturers anticipate equipment failures before they happen. By continuously monitoring the performance of critical components and analyzing patterns in the data, these systems can predict when parts need maintenance or replacement, reducing the risk of unexpected breakdowns.
Enhanced Product Quality Control: AI-based systems can also be employed to monitor product characteristics in real-time, such as moisture content, structure, and formulation consistency. This can lead to the creation of more robust, consistent products, as the AI system will flag potential issues and make real-time adjustments to the drying process.
Faster Development Cycles: AI and ML tools can speed up the development of new freeze-drying processes by allowing manufacturers to simulate and model different drying conditions. This reduces the time needed for trial and error, accelerates product development, and improves process scalability.
The use of Process Analytical Technology (PAT) in freeze-drying is advancing to provide real-time, non-invasive monitoring of critical quality attributes (CQAs) during the lyophilization process. PAT enables manufacturers to achieve better control over the quality of their products and ensure consistency across batches.
Real-Time Monitoring: Advanced PAT tools, such as NIR spectroscopy, Raman spectroscopy, and mass spectrometry, allow for continuous monitoring of moisture content, temperature, and pressure. This helps to optimize the drying process by enabling immediate adjustments during the cycle.
Improved Regulatory Compliance: The increasing adoption of PAT is helping companies meet stringent regulatory requirements by ensuring the consistency and quality of freeze-dried products. With real-time process data, pharmaceutical manufacturers can provide better documentation and more accurate traceability, reducing the risk of non-compliance during audits.
Enhanced Process Understanding: PAT also offers deeper insights into the freeze-drying process itself, allowing for the identification of any inefficiencies or variations. This improved process understanding can lead to enhanced process design, optimized energy use, and improved product stability.

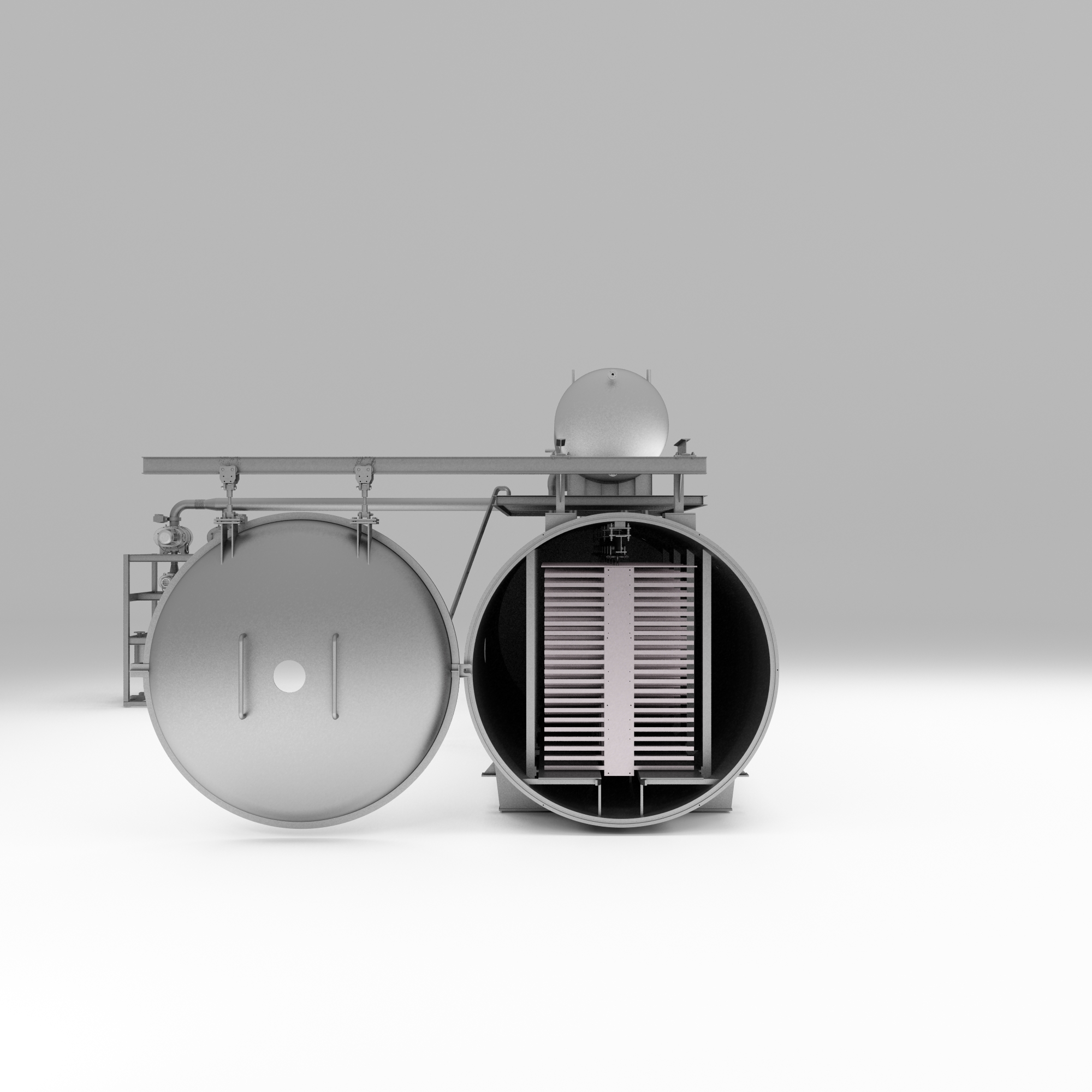

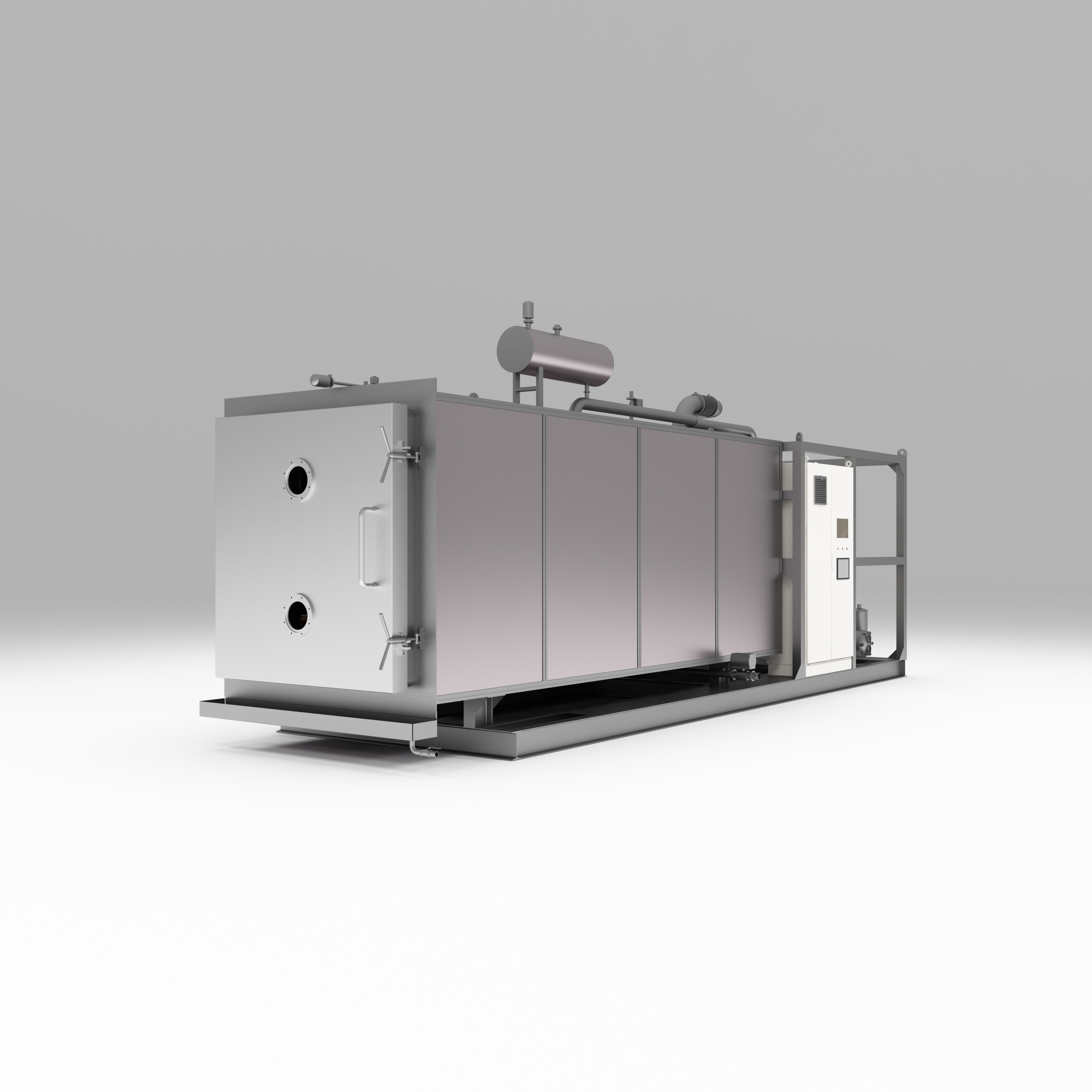

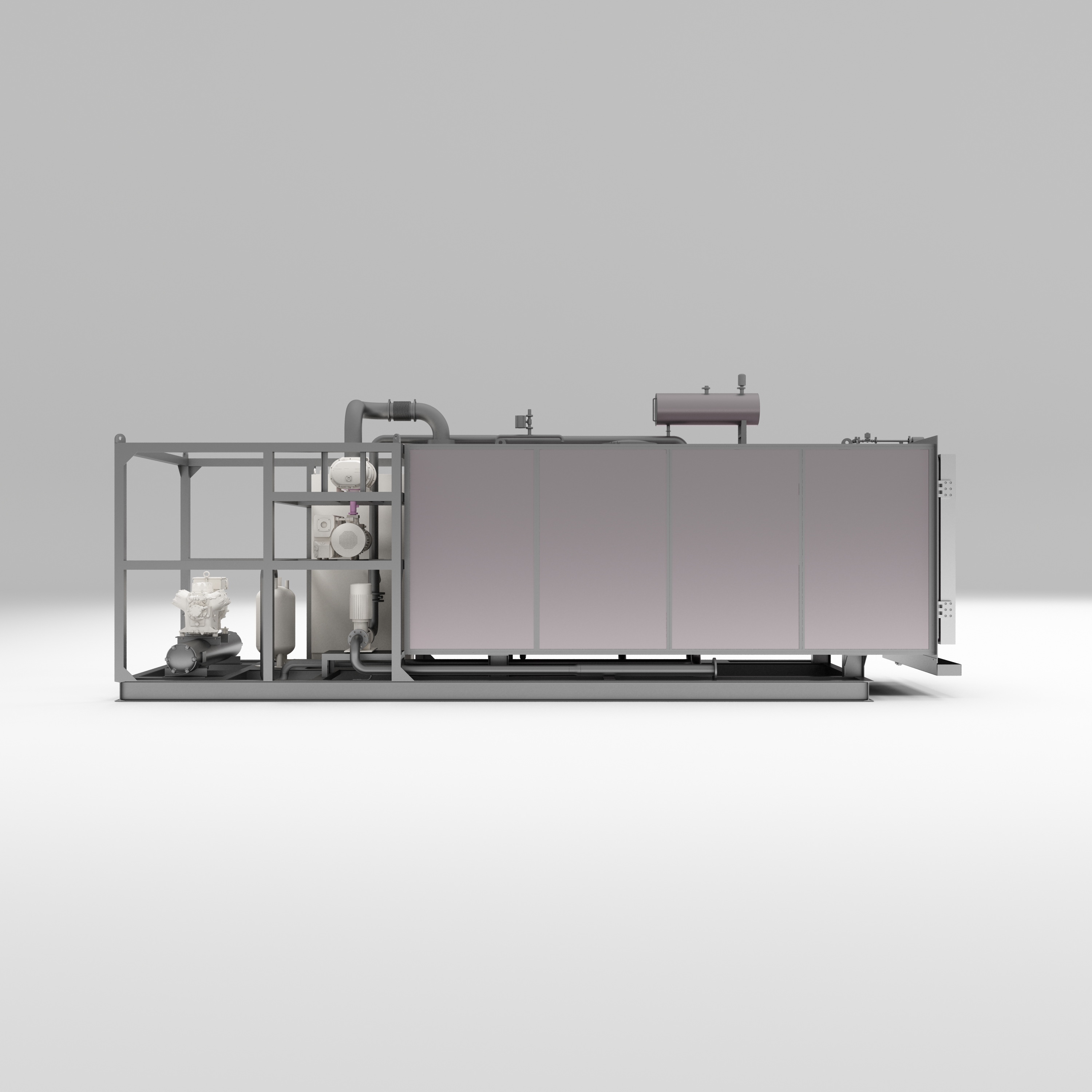

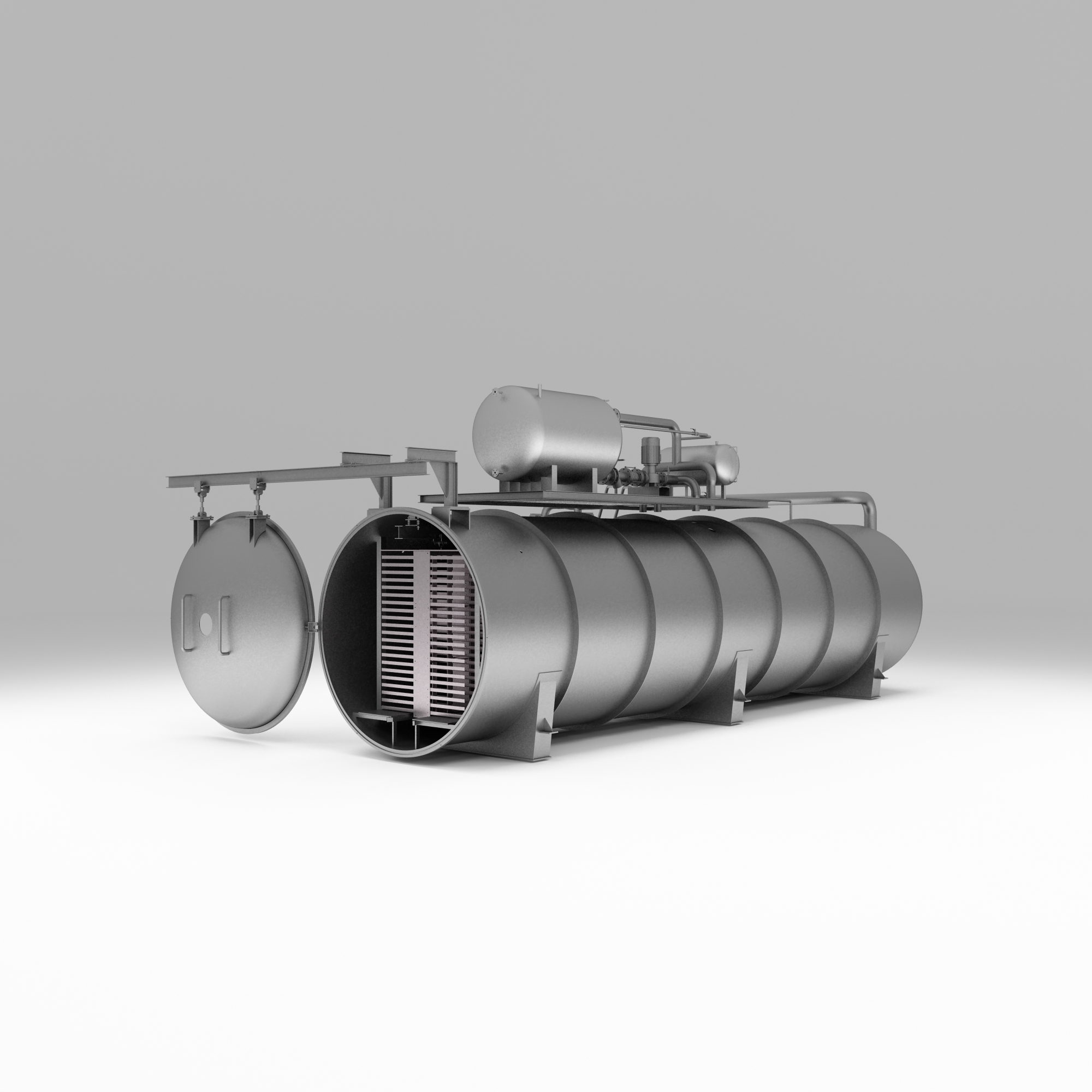

Sieno's whole series of freeze-drying equipment, covering the experimental research to the industrial scale, is energy efficient, stable, and reliable, with flexible customization as the core, to production, optimization of process, and multiple fields with green manufacturing solutions.
Sieno, based on the research of intelligent freeze-dried food, provides with custom process for the whole chain of freeze-dried technology support (including pretreatment, freeze-dried, and packaging), helping enterprises realize multiple improvements in efficiency, quality, and environmental protection.
Equiment & Soiution
Food Industry Pharmaceuticals Industry Agricultural Industry Pet Industry Beauty Care Industry Chemical Engineering & Laboratory Environmental Protection & Circular EconomyContact Info.
+86- (0) 519-8578 6988
+86-180 6875 7376
emmy@jsblk.com
Zhenglu Town, Tianning District, Changzhou City, Jiangsu Province, China
Follow Us
Copyright ©
Sieno Freeze-drying Technology Research Institute (Jiangsu) Co., Ltd
All Rights
Reserved
Custom One-Stop Freeze Drying Equipment Suppliers
