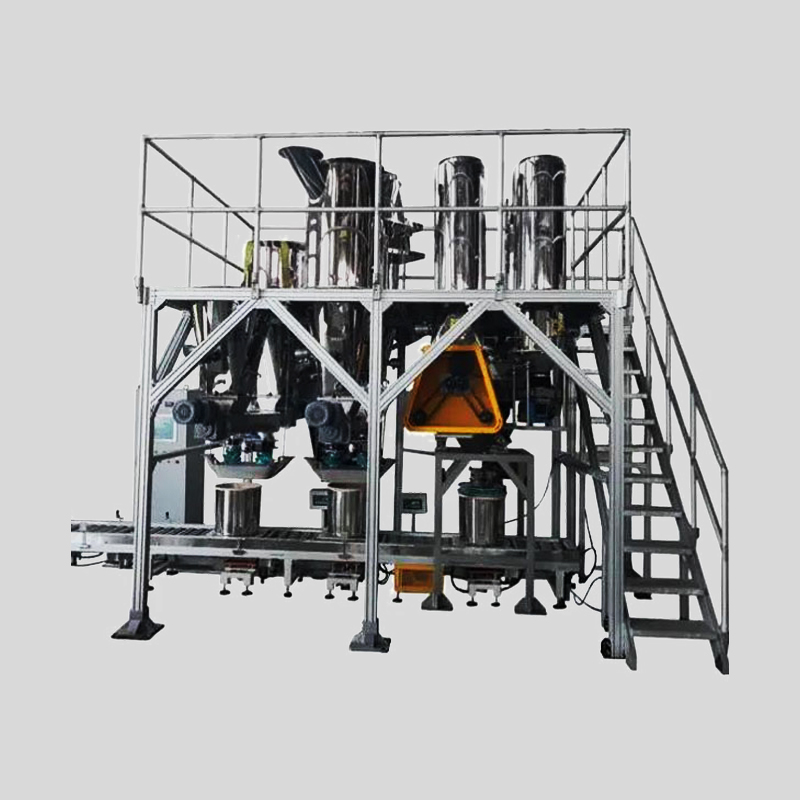

Cosmetic Raw Materials Automatic Proportioning System for Protective Agents

Cosmetic Raw Materials Automatic Proportioning System for Protective Agents

Functional Introduction:

The system achieves precise mixing of composite protective agents such as trehalose and mannitol, with an error control of ±0.5%. It is designed for the stability conditioning step before freeze-drying, where the ratio and concentration of lyoprotectants determine the freezing resistance of the active ingredient and its survival through the drying cycle. The proportioning system automates what is otherwise a manual weighing and blending operation, bringing recipe-controlled accuracy to a stage that directly governs the batch’s freeze-drying yield and shelf-life stability.

Why proportioning accuracy is a freeze-drying variable

In freeze-dried cosmetic actives — peptides, proteins, enzymes, and other heat-sensitive molecules — the protective agent is not a minor additive. Trehalose and mannitol form the amorphous matrix that stabilizes the active ingredient during freezing and sublimation; the ratio between them, and the absolute concentration in the formulation, determine the glass transition temperature, the collapse temperature, and ultimately whether the cake retains its structure or collapses during drying. A proportioning error of even a few percent shifts that matrix: too little protectant and the active ingredient loses activity through the freeze-drying cycle; too much and the cake becomes hygroscopic or fails the reconstitution specification.

Performance data

• Proportioning accuracy: error controlled within ±0.5% for composite protective-agent blends, covering trehalose, mannitol, and similar lyoprotectants used in cosmetic active-ingredient freeze-drying.
• Recipe management: multiple formulations stored and recalled by recipe number, with automatic dosing of each component according to the stored ratio — routine changeover between products is a parameter switch rather than a manual re-weighing.
• Traceability: each batch records the actual dosed quantities and the deviation from target, producing a documentation trail that supports batch release and customer audit.
• Integration: designed for high-end active raw material production lines, linking with upstream component storage and downstream freeze-drying equipment as an in-line stability-conditioning module.

Application Scenarios:

• Stability conditioning before freeze-drying to improve the freezing resistance of ingredients. The proportioned protective-agent solution is combined with the active ingredient ahead of freezing, so the formulation entering the freeze-dryer has the glass-transition and collapse behavior the recipe specifies.
• Automation requirements of high-end active raw material production lines. For cosmetic peptides, recombinant proteins, and other high-value actives, the proportioning system replaces manual weighing with recipe-controlled dosing, reducing batch variation and supporting the documentation requirements of a regulated production environment.

Case reference: a leading cosmetic active ingredient manufacturer in East China

Bolaike supplied this automatic proportioning system to a leading cosmetic active ingredient manufacturer headquartered in East China, for its freeze-dried peptide and protein active lines. The customer produces high-purity cosmetic actives for the domestic and export personal-care markets, with a portfolio that includes freeze-dried peptide formats where the lyoprotectant formulation directly determines the batch’s activity retention and reconstitution behavior.. The requirement arose from the limitations of manual proportioning in a multi-product environment. The customer’s protective-agent blends — trehalose and mannitol at product-specific ratios — were weighed and mixed manually before each freeze-drying batch, which introduced variation between operators and between batches of the same product. The variation showed up downstream as inconsistent cake structure and occasional activity loss that forced batch investigation. The proportioning system was specified with ±0.5% error control and recipe-based automatic dosing, so that each product’s protective-agent ratio is recalled from the recipe library rather than re-weighed by the operator. For the customer, the measurable result is a protective-agent formulation that enters the freeze-dryer at the specified ratio and concentration, batch after batch, rather than within an operator-dependent range. The batch record now carries the actual dosed quantities as a traceable input, which supports both internal quality release and the documentation that export customers request for high-end cosmetic actives. The proportioning step has moved from a manual preparation task to a controlled process parameter in the freeze-drying line.
