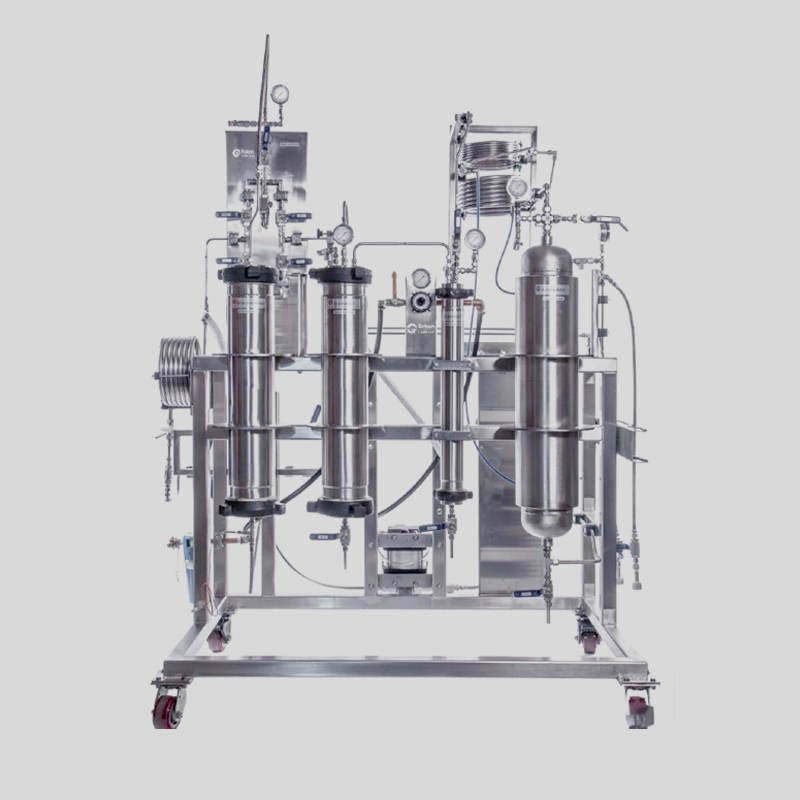

Supercritical CO₂ Extraction and Solvent Removal System for Polymers and Coatings

Key Features and Technical Functions

1.Supercritical CO₂ Extraction Technology

Uses carbon dioxide under supercritical temperature and pressure conditions to achieve selective extraction and separation of compatible residual organic solvents and other target compounds. Extraction performance can be adjusted through pressure, temperature, and operating parameters.

2.Low-Temperature Solvent Removal

Provides a solvent-removal approach that can operate at relatively moderate temperatures compared with conventional high-temperature thermal desolventizing. Helps reduce thermal exposure for suitable heat-sensitive polymer materials and functional coating ingredients.

3.High-Purity Material Processing

Helps reduce residual organic solvent content in polymer processing systems, supporting the preparation of high-purity polymer powders and specialty material intermediates. Residual solvent levels of ≤10 ppm may be achievable for validated material-solvent systems under specified operating conditions.

4.Adjustable Pressure and Temperature Control

Supports controlled adjustment of extraction pressure, temperature, CO₂ flow, and processing time to optimize solvent removal and material compatibility. Helps establish repeatable operating conditions for different polymer formulations.

5.Reduced Organic Solvent Residues

Uses the selective solvation properties of supercritical CO₂ to facilitate the separation of targeted organic compounds from suitable polymer matrices. Helps improve material purity and reduce residual solvent-related quality risks.

6.Solvent Separation and CO₂ Recovery

Can be configured with downstream separation and CO₂ recovery systems to separate extracted compounds and enable carbon dioxide reuse, helping improve resource utilization and reduce process emissions.

7.Integration with Polymer Purification and Freeze-Drying Processes

Can be integrated with polymer dissolution, precipitation, separation, filtration, formulation, pre-freezing, and vacuum freeze-drying systems according to the material processing route. Supports customized production workflows for high-purity polymer powders and specialty functional materials.

Applications in Polymer, Coating, and Freeze-Dried Material Production

The Supercritical CO₂ Extraction and Solvent Removal System supports high-purity material preparation and specialized downstream drying applications.

• Medical-Grade Polymer Purification: Helps remove residual organic solvents and selected low-molecular-weight compounds from compatible polymer materials, supporting the preparation of high-purity polymer intermediates.
• Electronic-Grade Polymer Processing: Supports residual solvent control and purification of specialty polymer materials used in electronic components, insulation materials, and precision manufacturing.
• Functional Coating Material Preparation: Helps remove selected residual solvents from suitable coating formulations and polymer-based functional materials, supporting improved material purity and downstream processing consistency.
• Polymer Powder Production: Supports solvent removal and purification before subsequent precipitation, separation, milling, or drying operations.
• Freeze-Dried Polymer Material Preparation: Can serve as an upstream purification step for compatible polymer systems before formulation, pre-freezing, and vacuum freeze-drying, helping prepare materials for low-temperature dehydration.
• Specialty Chemical Processing: Suitable for selected solvent-sensitive and high-purity specialty chemical systems requiring controlled extraction and separation.
• Advanced Material Development: Supports laboratory research, pilot-scale process development, and industrial production of specialty polymer materials and functional coating ingredients.

Importance of Supercritical CO₂ Processing in Polymer Freeze-Drying

In specialized polymer and functional material manufacturing, material purification and solvent control are important considerations before downstream drying.

Residual organic solvents may affect the thermal stability, chemical purity, physical properties, and application performance of polymer materials. For products intended for freeze-drying, appropriate solvent removal and formulation preparation are particularly important because the freezing behavior and sublimation characteristics of the material depend on its composition.

Supercritical CO₂ processing can support the upstream preparation stage through several functions:

• Residual Solvent Reduction: Helps remove compatible organic solvents before subsequent material processing and drying.
• Improved Material Purity: Supports the preparation of polymer intermediates with controlled residual solvent levels.
• Reduced Thermal Exposure: Provides an alternative to certain high-temperature desolventizing processes for suitable materials.
• Downstream Drying Compatibility: Helps prepare compatible polymer materials for subsequent formulation, freezing, and vacuum freeze-drying.
• Process Quality Control: Enables manufacturers to optimize pressure, temperature, and extraction conditions to improve batch-to-batch consistency.

For suitable aqueous or otherwise freeze-dryable polymer formulations, the downstream process may include:

1. Supercritical CO₂ extraction or solvent removal.
2. Material separation and purification.
3. Formulation adjustment and preparation of a suitable drying feed.
4. Pre-freezing under controlled conditions.
5. Vacuum freeze-drying through ice sublimation.
6. Powder collection, milling, and packaging.

It is important to distinguish solvent removal from freeze-drying. Supercritical CO₂ processing removes selected residual compounds through fluid extraction and separation, whereas vacuum freeze-drying removes frozen water or other suitable frozen solvents through sublimation. The two technologies can complement each other when the material composition and processing route are compatible.

Position in the Polymer and Functional Coating Production Process

The Supercritical CO₂ Extraction and Solvent Removal System is generally installed in the upstream purification or solvent-removal stage, before final drying and material finishing.

Typical Polymer Material Processing Route:

Polymer Raw Material Preparation → Polymerization or Dissolution → Supercritical CO₂ Extraction and Solvent Removal → Material Separation → Purification and Formulation → Pre-Freezing (for compatible freeze-drying formulations) → Vacuum Freeze-Drying → Powder Processing → Sieving → Packaging

For functional coating materials, the processing route may instead involve:

Polymer or Coating Formulation Preparation → Supercritical CO₂ Processing (where compatible) → Solvent Separation → Material Recovery → Final Formulation → Coating Application or Further Processing

The actual process sequence depends on polymer chemistry, solvent properties, material morphology, and final product specifications.

In an integrated production system, the supercritical CO₂ unit performs selective extraction and solvent removal, while the industrial vacuum freeze dryer performs low-temperature dehydration of suitable pre-frozen formulations.

Industrial Applications and Target Customers

The SIENO Supercritical CO₂ Extraction and Solvent Removal System is suitable for:

• High-purity polymer manufacturers
• Medical-grade polymer material producers
• Electronic-grade polymer processing enterprises
• Functional coating material manufacturers
• Specialty chemical manufacturers
• Advanced material research and development centers
• Polymer powder processing plants
• High-performance material manufacturers
• Industrial laboratories and pilot-scale production facilities
• Manufacturers developing specialized polymer freeze-drying processes

SIENO Integrated Polymer and Specialty Material Processing Solutions

SIENO specializes in industrial vacuum freeze-drying equipment and integrated low-temperature dehydration solutions for advanced materials, specialty ingredients, and functional products.

For polymer and specialty material manufacturers, SIENO can support customized process integration involving material pretreatment, purification, formulation preparation, pre-freezing, vacuum freeze-drying, powder processing, and finished-product packaging.

The Supercritical CO₂ Extraction and Solvent Removal System serves as an upstream purification unit for compatible polymer processing routes, while SIENO industrial vacuum freeze dryers perform the core dehydration process through vacuum sublimation.

By coordinating material purification, solvent management, formulation preparation, and vacuum freeze-drying technologies, SIENO helps manufacturers develop customized processing solutions for compatible polymer powders, specialty functional materials, and advanced material applications.

Production configurations can be tailored according to polymer chemistry, solvent systems, target residual solvent levels, material properties, processing capacity, and final product requirements.
