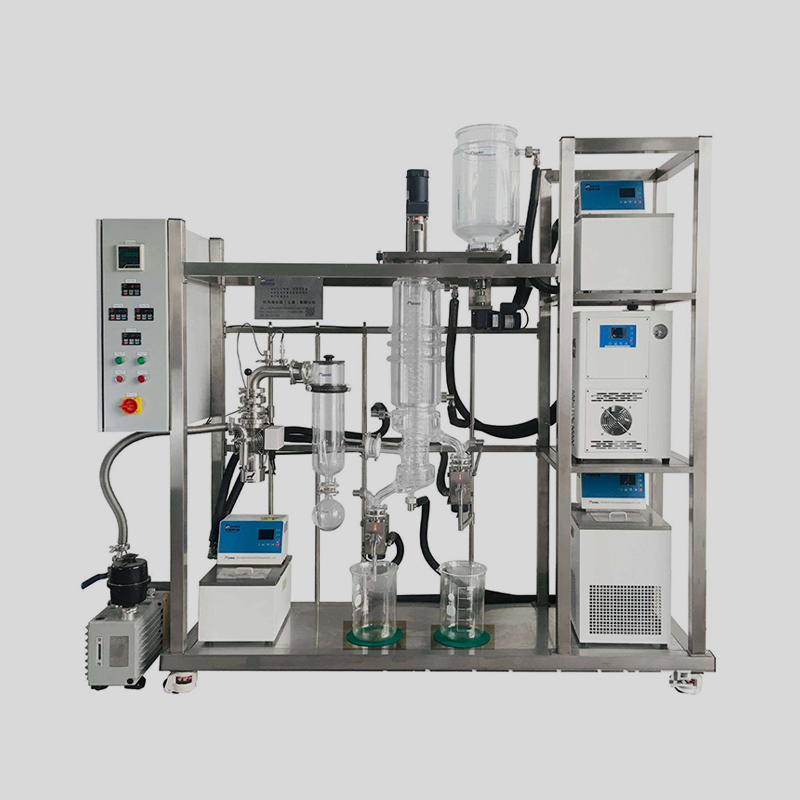

Molecular Distillation System for Plant Extracts

Product Overview:

A molecular distillation system capable of achieving 0.01 μm-level separation precision under low-temperature, high-vacuum conditions. Utilizing the principles of short-path evaporation and differences in molecular mean free paths, it effectively separates volatile and heat-sensitive components from plant extracts. It is specifically designed for the purification of high-value plant essential oils and bioactive small molecules, as well as for the standardized processing of cosmetic and pharmaceutical raw materials.

Key Advantages and Selling Points:

Ultra-high precision separation: Achieves a separation precision of 0.01 μm, capable of distinguishing components with minimal molecular weight differences to yield high-purity monomers and products within specific molecular weight ranges—delivering quality far superior to traditional distillation.

Low-temperature activity preservation: Evaporation temperatures can be as low as 60–80°C—well below atmospheric boiling points—preventing damage to heat-sensitive active ingredients and retaining over 95% of their biological activity.

Minimal thermal exposure: Materials remain on the heating surface for only seconds to tens of seconds, significantly reducing the risk of thermal decomposition and polymerization; this is particularly ideal for volatile oils and aromatic components.

Purely physical process: No chemical solvents are added throughout the process, ensuring residue-free products that meet the stringent purity standards for cosmetic and pharmaceutical raw materials—offering a safe, eco-friendly solution.

Intelligent integrated control: Features high-precision vacuum regulation and temperature control systems, ensuring excellent batch stability and reproducibility, ease of operation, and suitability for continuous production.

Primary Applications:

Fractional distillation and purification of high-value-added plant essential oils (e.g., rose, lavender, peppermint)

Separation and enrichment of small-molecule natural active compounds (e.g., Vitamin E, phytosterols, squalene)

Standardized decolorization and deodorization of cosmetic active ingredients and pharmaceutical intermediates

Concentration and refining of heat-sensitive natural pigments

Basic Specifications (Typical Values):

Separation precision: 0.01 μm (molecular weight resolution)

Evaporation temperature: 60–200°C (adjustable)

Operating pressure: 0.001–1.0 mbar

Evaporation area: 0.1–10 m² (customized based on capacity)

Processing capacity: 2–200 kg/h

Material: 316L stainless steel (sanitary grade)

Specific problems addressed:

Degradation of heat-sensitive components → Low-temperature short-path distillation preserves activity and ensures higher potency

Insufficient purity from traditional distillation → 0.01 μm precision separation yields high-purity monomer components

Risk of residual solvents → Purely physical process; no solvents introduced; natural and eco-friendly

Inconsistent quality of cosmetic raw materials → Standardized processing ensures strong batch-to-batch consistency

Difficulty removing impurities and off-odors → Effectively removes pigments, odors, and trace high-molecular-weight impurities

Benefits for users:

Significant boost in product purity: Obtain high-value monomers or products with precise molecular weight ranges, commanding premium prices in high-end markets.

Environmentally friendly and safe processes: Reduce organic solvent usage and waste discharge, aligning with trends in clean production certification.

Enhanced core competitiveness: Master high-precision separation technology, providing a platform for the development of functional raw materials.

Maximization of raw material value: Transform crude products into premium goods, increasing added value and export competitiveness.

Expansion of application areas: Purified products can be used directly in pharmaceuticals, cosmetics, and health supplements, broadening sales channels.
